CIRCULAR CHAIN BUCKET ELEVATOR

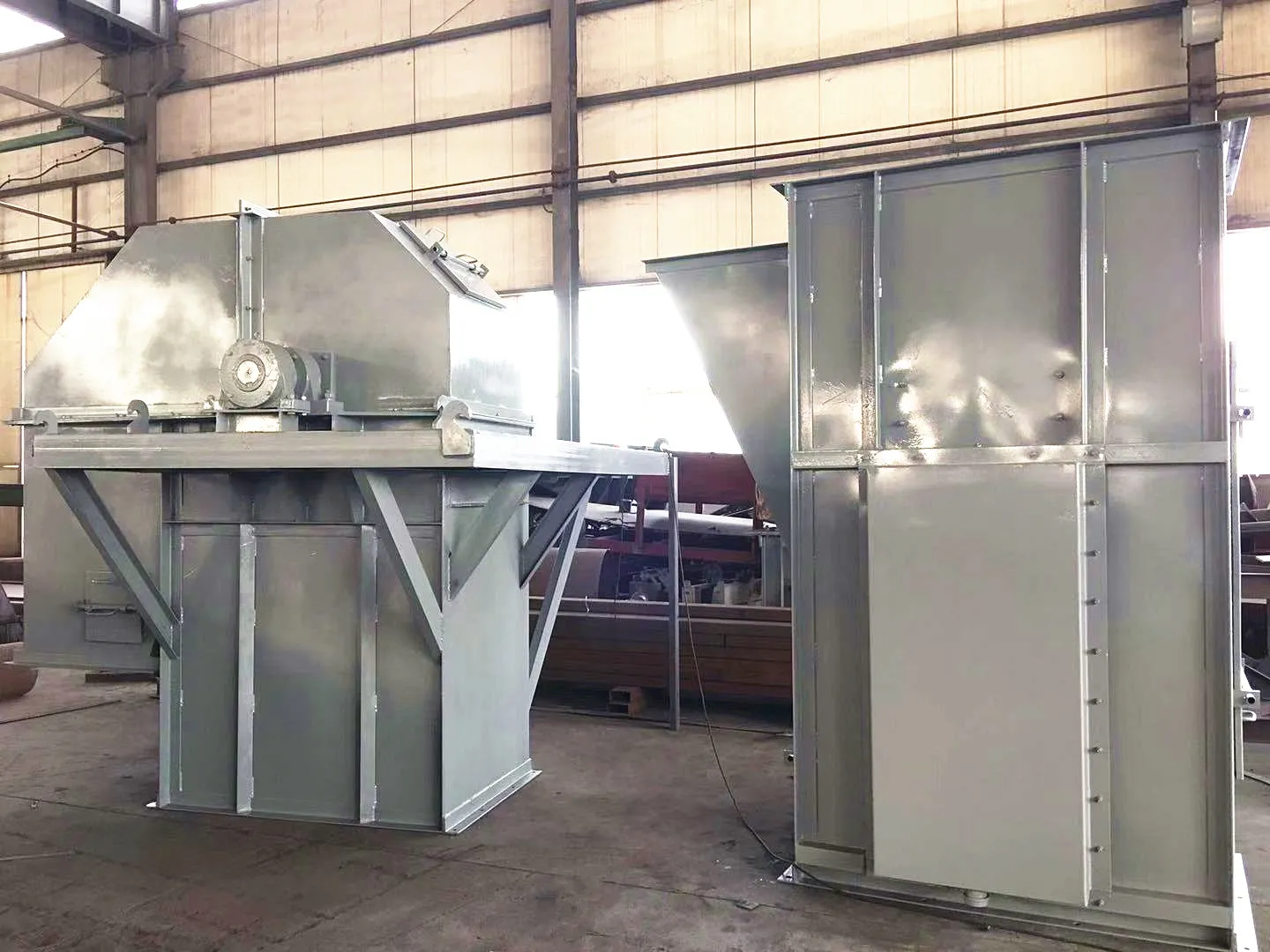

TH Circular Chain Bucket Elevator

Model: TH

Bucket Width: 160/250/315/400/500/630/800/1000/1250mm

Bucket Running Speed: 1.2/1.4/1.5/1.6m/s

Traction Component: High strength ring chain

Capacity: 19-540m³/h

Max. Lifting height: 52m

ADVANTAGE

Stable Operation, Low Failure Rate

. Bucket elevators with a meticulously controlled production process operate more smoothly,
. delivering low failure rates and high production efficiency.

High-Quality Chains: Extended Service Life

. Wear parts in our bucket elevators last 2 years longer than standard parts.
. Simple operation, easy maintenance: Significant cost savings.

Superior Dust Containment

. Good bottom sealing|No dust leakage

. Energy-saving & eco-friendly|Self-tensioning system | Single-installation

Fast-Track Delivery

. ERP-Driven Integration-Completed Industry-Informatization Fusion Management System

. Full Data Traceability-Enabling Fast-Track Delivery Capabilities at Hebi General

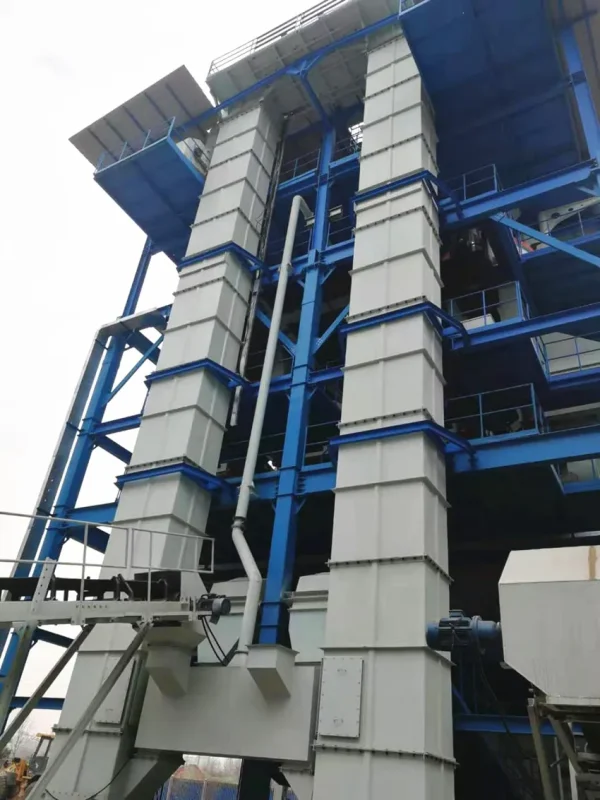

PROJECTS

PRODUCT INFORMATION

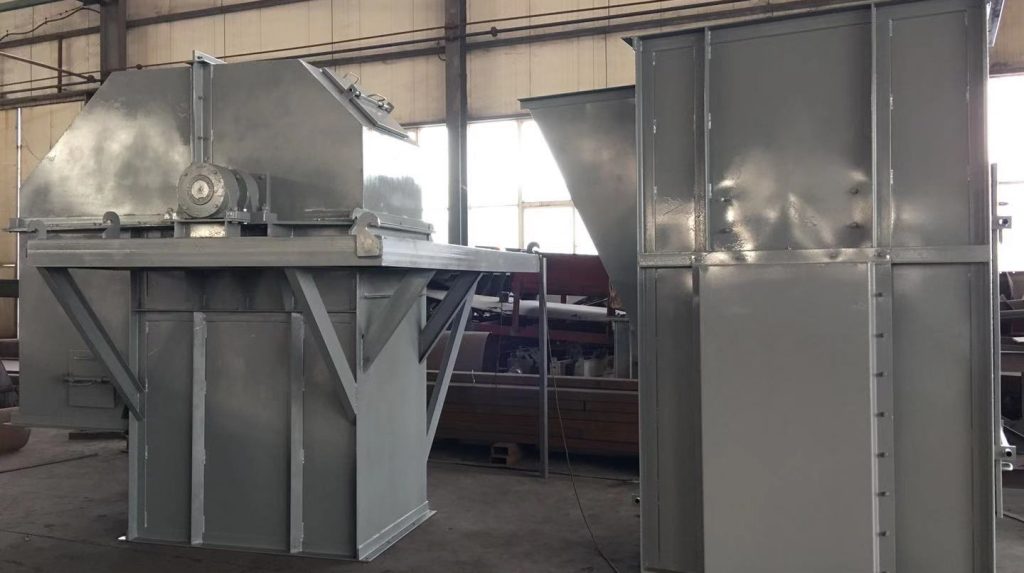

Product Overview

The TH Series Circular Chain Bucket Elevator conveys highly abrasive powdered, granular, and small lump materials (e.g., coal, cement, crushed ores) vertically up to 40m+. Featuring simple robust construction, smooth operation, it incorporates segmented sprockets with hardened rims for extended service life and handles material temperatures ≤250°C.

Product Features

1. Bucket elevator: Easy maintenance, long lifespan.

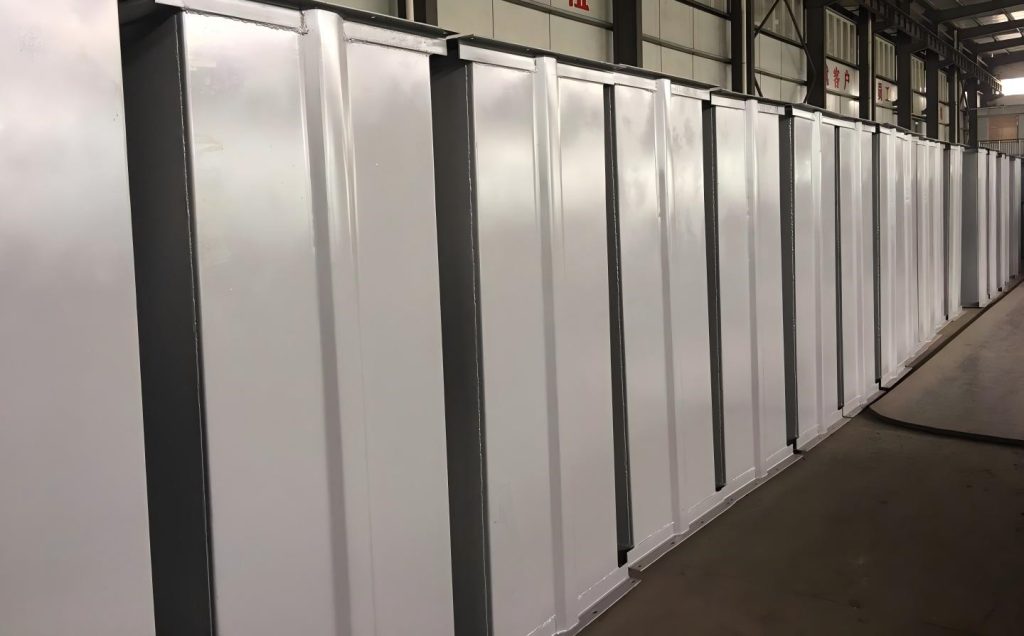

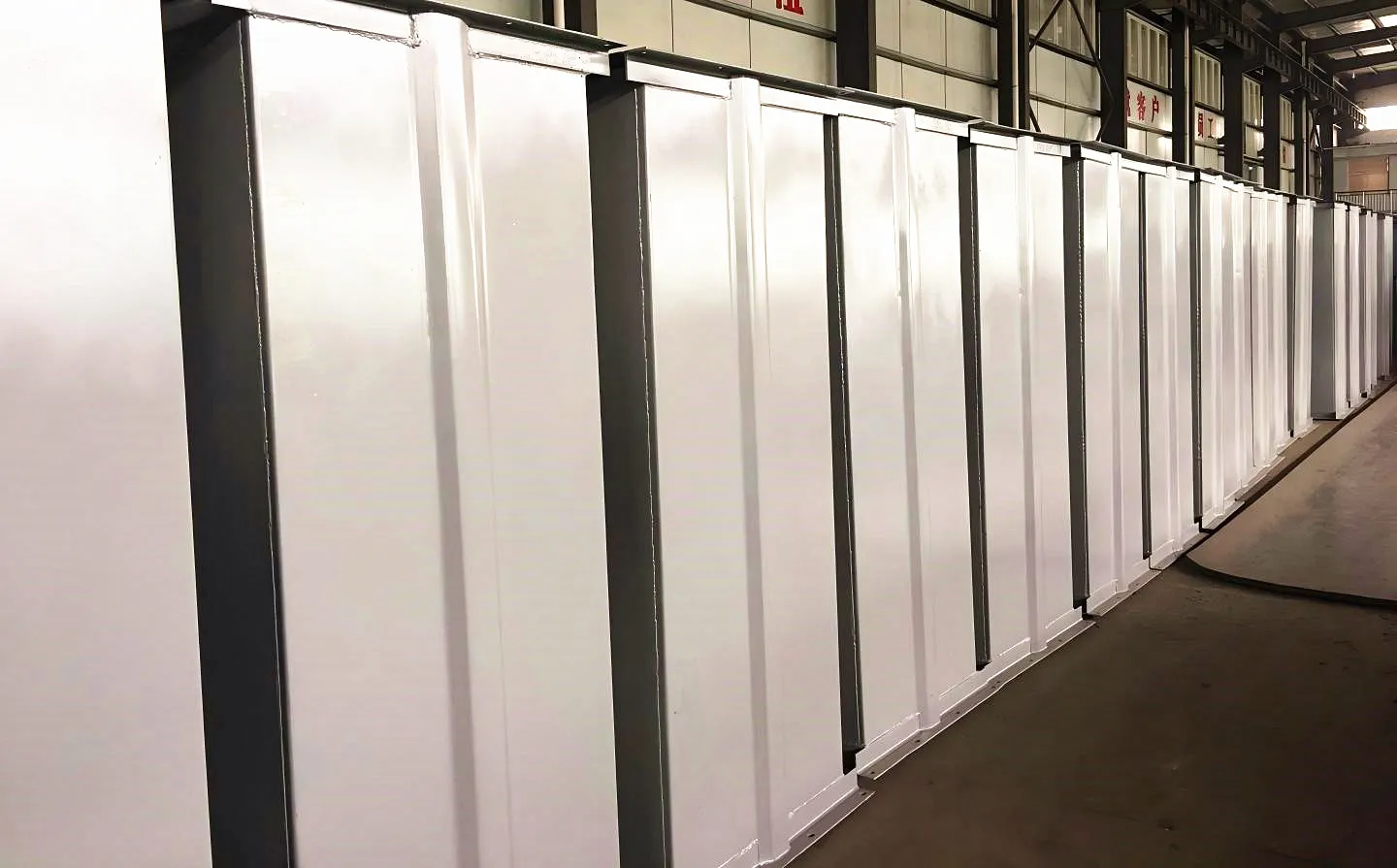

2. Thickened steel plate casing, high rigidity.

3. Smooth & reliable operation at height, low noise, easy maintenance.

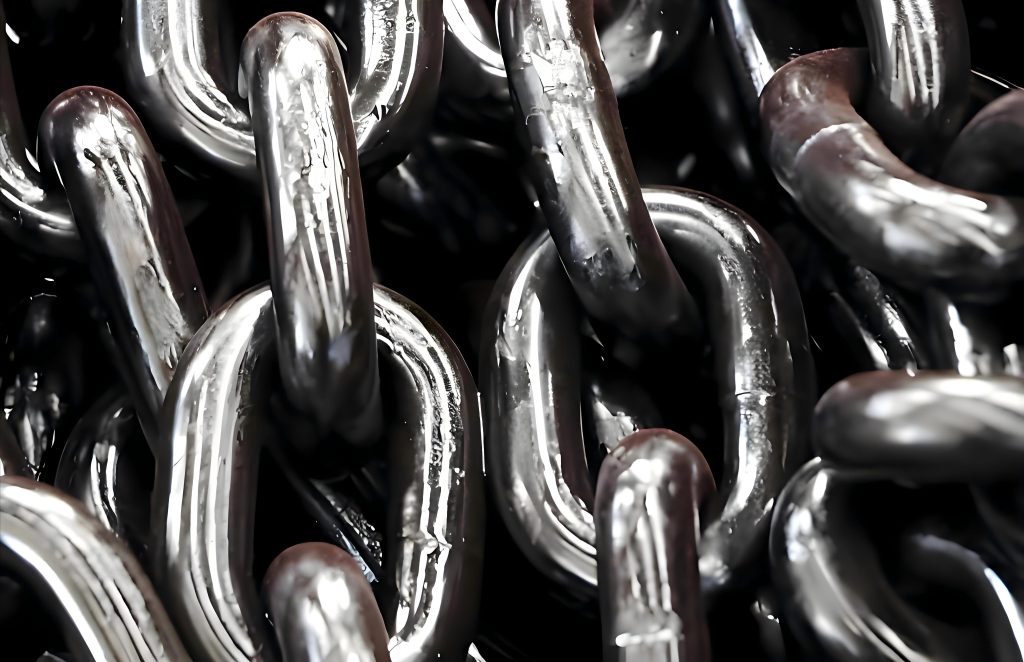

4. Bucket Elevator chains: Forged low-alloy steel, carburizing & quenching, high tensile strength, wear resistance.

Parameters

Model of Bucket Elevator		TH160		TH250		TH315		TH400		TH500		TH630		TH800		TH1000		TH1250
Bucket Type		zh	sh	zh	sh	zh	sh	zh	sh	zh	sh	zh	sh	zh	sh	zh	sh	zh	sh
Capacity (m³/h)		19	30	30	48	35	59	58	94	73	118	114	185	150	240	240	360	360	540
Bucket	Bucket Volume (L)	1	2	3	5	3.8	6	6	10	9	15	15	24	24	38	38	60	60	95
	Bucket Pitch (m)	350		450		512				688				936		936		1001
Chain	Round Steel Diameter× Links(m)	Φ12X45		Φ18X64						Φ22X86				Φ24X86		Φ24X86		Φ28X92
	Single Chain Breaking Strength(KN)	>170		>320						>480				>560		>560		>660
Bucket Speed (m/s)		1.3		1.2		1.4				1.5				1.6		1.6		1.6
