SIDEWALL BELT CONVEYOR

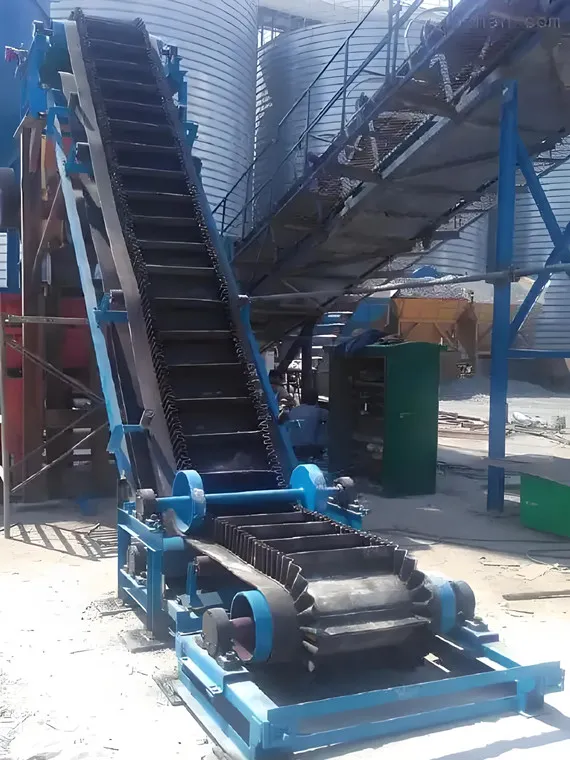

Sidewall Belt Conveyor

Model: DJ

Belt width: 300/400/500/650/800/1000/1200/1400mm

Side wall height: 80/100/120/160/200/240/300/400mm

Cleat Type: C type / T type / TC type / TCS type

Distance between baffles: 129/252/378/504mm

Conveying Angle: 30°~90°

PRODUCT INFORMATION

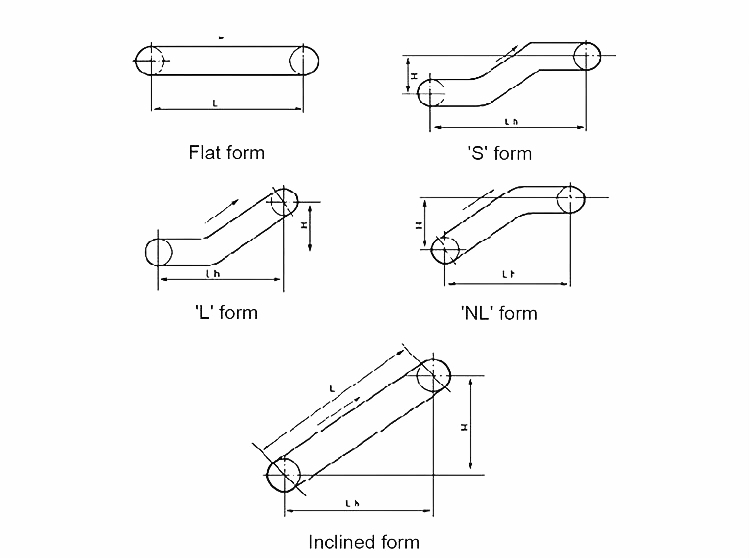

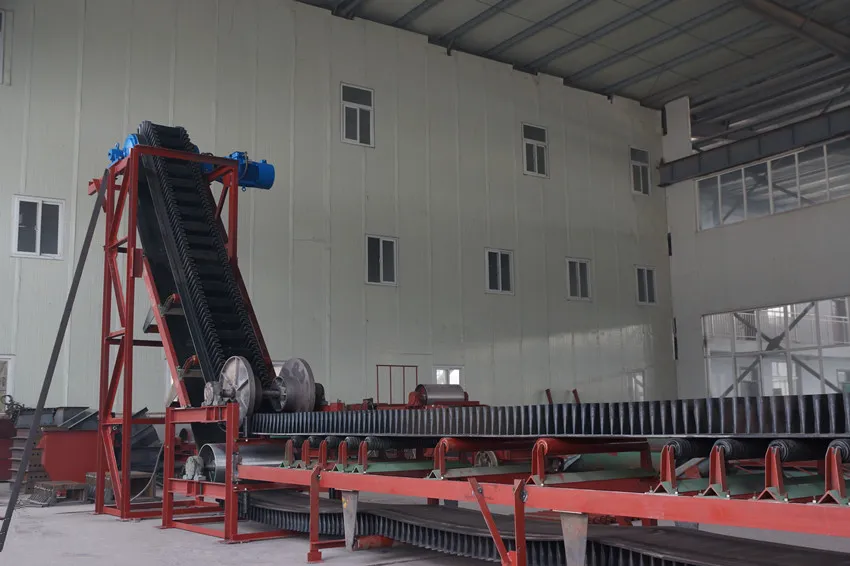

SIDEWALL BELT CONVEYOR LAYOUT FORM

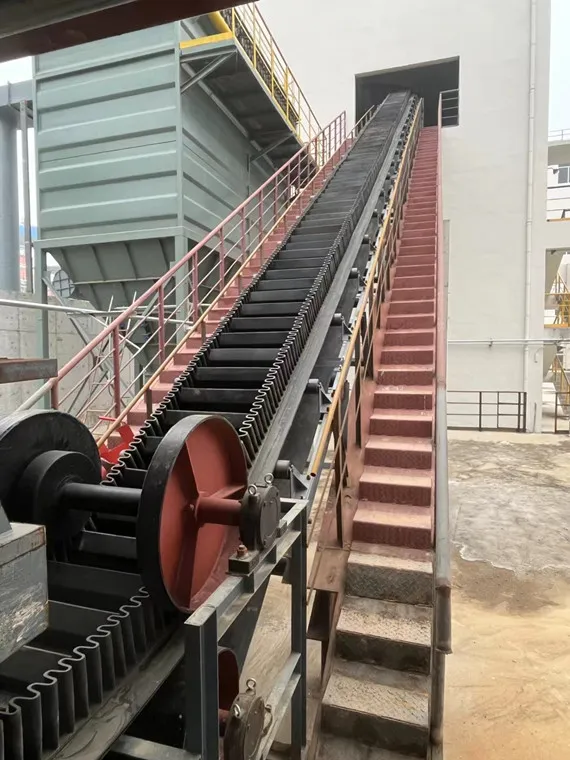

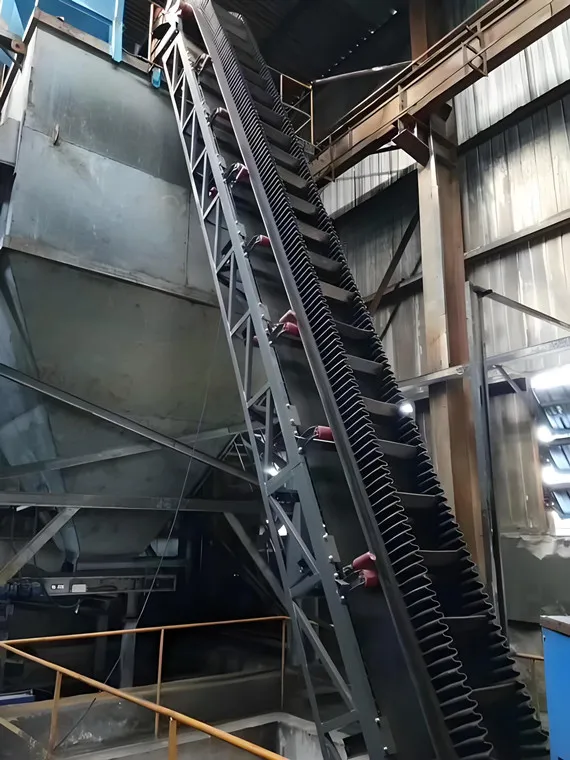

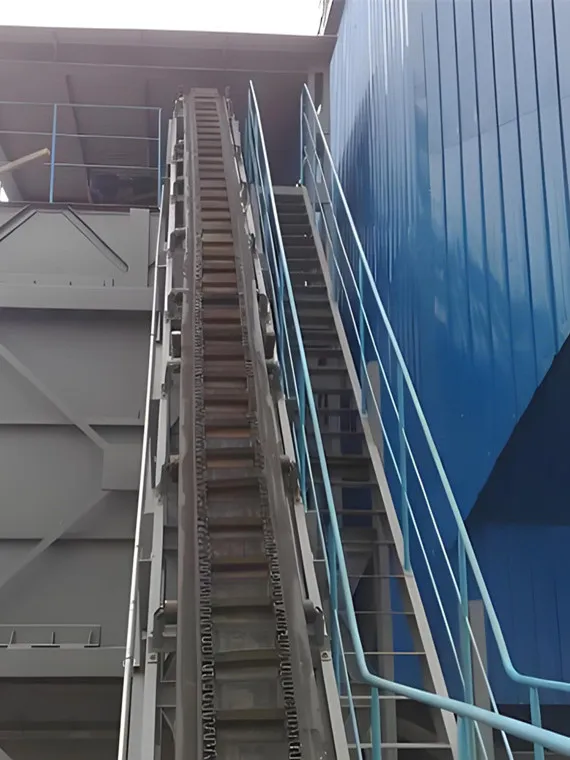

SIDEWALL BELT CONVEYOR DESCRIPTION

Sidewall Belt Conveyor, also known as Steep Incline Belt Conveyor, is continuous conveying equipment for bulk materials. The sidewall belt conveyor’s structure is a flat rubber conveyor belt with glue on both sides which can freely adjustable rubber waveform on vertical “sidewall”. Between the sidewall edges hard and elastic cleats are bonded to form a box-type bucket to continuously convey the material in the bucket. Moreover, it allows bulk material to be transported at an angle of 30 degrees to 90 degrees. Besides, it can adopt a flexible layout so as to solve enterprises in the aspect of industrial production including complex horizontal, incline, or vertical transporting requirements.

SIDEWALL BELT CONVEYOR FEATURES

1. Low Investment Cost
Large angle or vertical conveying can be realized, thus reducing equipment cost and construction costs, which can save the total investment cost.

2. Reduced Leakage
The unique corrugated sidewalls structure can effectively reduce material leakage, improved working environment.

3. Reduce installation space
Large angle or vertical conveying reduce the length requirements to reach the design height when compared to conventional belt conveyor, thus reduce installation space.

4. Flexible Layout
Sidewall belt conveyor can also be combined with other conveying equipment, to solve the enterprise in industrial production including horizontal, inclined or vertical complex conveying requirements.

5. Low Energy Consumption
Large angle or vertical conveying can greatly reduce the number of rollers and belt length, which can reduce roller and belt resistance, so as to effectively reduce energy consumption.

APPLICATIONS

·Sand ·Potash ·Fertilizers ·Aggregates ·Copper ore ·Fly ash
·Limestone ·Sulfur ·Wood Chips ·Petroleum Coke ·Sugar ·Mineral
·Gypsum ·Coal ·Clinker ·Iron ore ·Salt ·Other Bulk Solids

PARAMETERS

Belt width	Sidewall height	Cleat pitch	Slant angle
Belt width	Sidewall height	Cleat pitch	30°	40°	50°	60°	70°	90°
mm	mm	mm	Capacity(m3/h) Speed of belt=1m/s
500	120	252	52	40	32	26	21	–
500	160	378	65	52	42	34	28	17
650	120	252	78	60	48	39	32	–
650	160	378	73	56	45	36	30	–
800	120	129	99	76	60	49	40	–
800	200	378	148	114	91	74	61	37
1000	160	378	129	99	79	64	52	–
1000	240	504	229	176	141	–	–	–
1200	160	252	223	180	144	117	96	59
1200	240	378	342	280	224	183	149	91
1400	200	252	299	231	185	151	123	75
1400	240	378	422	345	276	225	184	113
