MOBILE BELT CONVEYOR

Mobile Belt Conveyor

Model: DY

BeltWidth: 300/400/500/650/800/1000/1200/1400mm

Conveying Distance: 3-25m

Belt Speed: 0.4~1.25m/s

Lifting Height: 0.8~9m

Capacity: 25~1000m³

PRODUCT INFORMATION

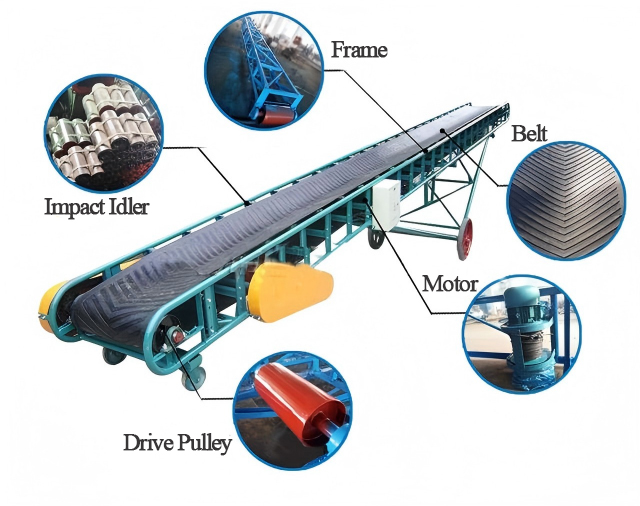

MOBILE BELT CONVEYOR STRUCTURE

MOBILE BELT CONVEYOR DESCRIPTION

The mobile belt conveyor is composed of a metal frame main body, pulleys, rollers, belt, motor, reducer, control panel, and other components. It is lightweight, aesthetically pleasing, and highly maneuverable. Suitable for short-distance transportation and loading/unloading of bulk materials or packaged items in applications such as ports, docks, railway stations, coal yards, warehouses, construction sites, sand and gravel fields, farms, and more.

MOBILE BELT CONVEYOR FEATURES

1. Simple structure and easy installation.

2. Low rate of breakdown and adapt to different use condition.

3. Various design form can meet different industries.

4. Cheap cost and long working life.

5. Easy move with special wheels, hight adjustable.

Parameters

Model		DY400	DY500	DY650	DY800	DY1000	DY1200	DY1400
Length (m)		3~25
Belt width(m)		400	500	650	800	1000	1200	1400
Belt speed(m)		0.4~1.25
Conveying height		≤9
Conveying capacity(m3/h)		40	80	200	300	500	800	1000
Slant angle (°)		0°~18°
Electric roller	Model	DY	DY	DY	DY	DY	DY	DY
Electric roller	Power(kw)	2.2	2.2	3	4	7.5	11	15
