STEEL CORD REINFORCED BELT BUCKET ELEVATOR

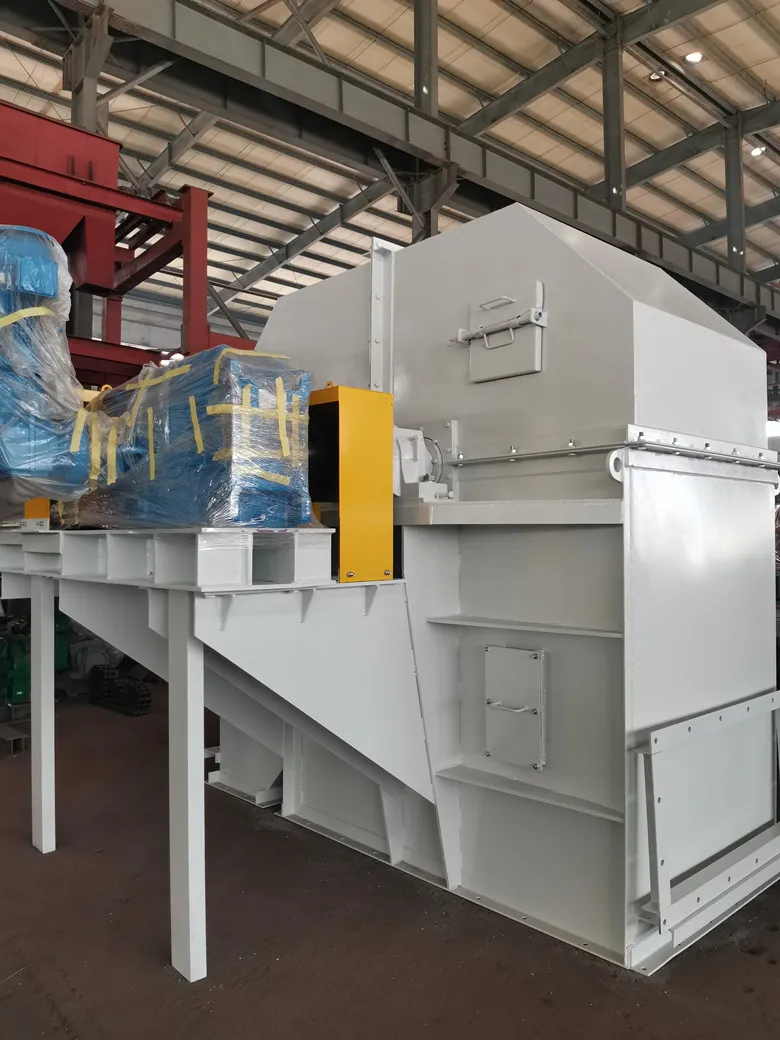

TGD Steel Cord Reinforced Belt Bucket Elevator

Model: TGD/TDG

Bucket Width: 250/315/400/500/630/800/1000/1250/1600mm

Traction Component: High strength ring chain

Capacity: 40~1100m³/h

Bucket Running Speed: 1.20/1.34/1.50/1.68/1.89m/s

Max. Lifting height: 80 m

ADVANTAGE

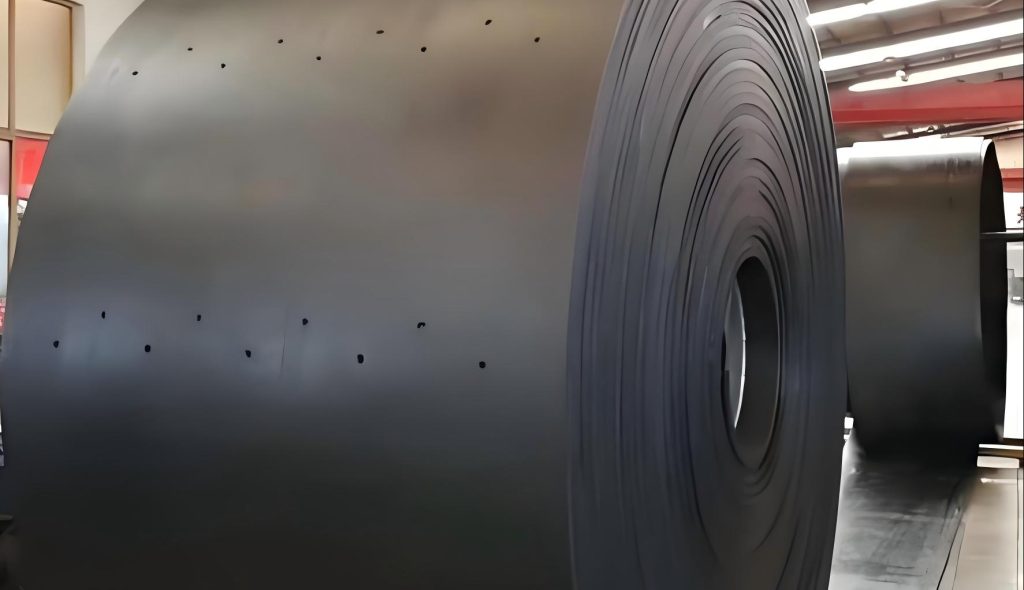

High-Tensile Steel Cord Reinforced Belt

. The bucket elevator utilizes high-strength steel cord rubber conveyor belts with exceptional tensile strength,

. significantly prolonging service life and reducing maintenance costs

Auto-Tracking System & Automatic Tensioning Device

. Featuring lower-section automatic tensioning technology with auto-correction capability, this system enables trouble-free adjustment and significant labor reduction.

. Belt joints utilize proprietary locking technology for ultimate splice integrity.

Superior Sealing & Dust-Tight

. The bucket elevator’s airtight lower section ensures superior dust containment

. Featuring energy-saving operation and self-tensioning technology, it requires only single installation

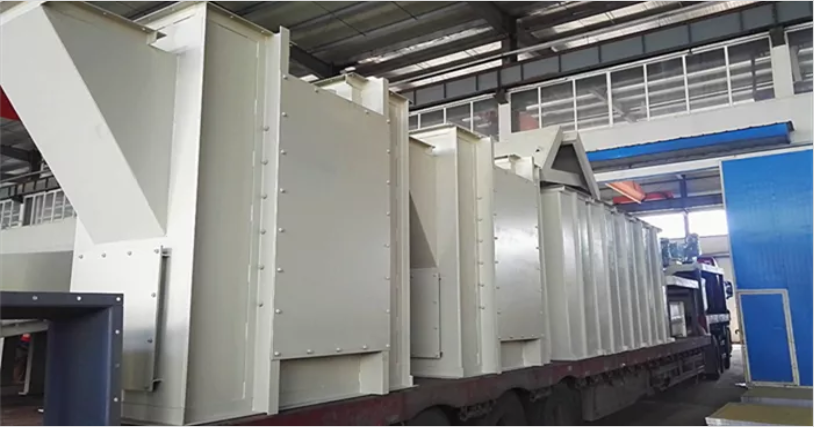

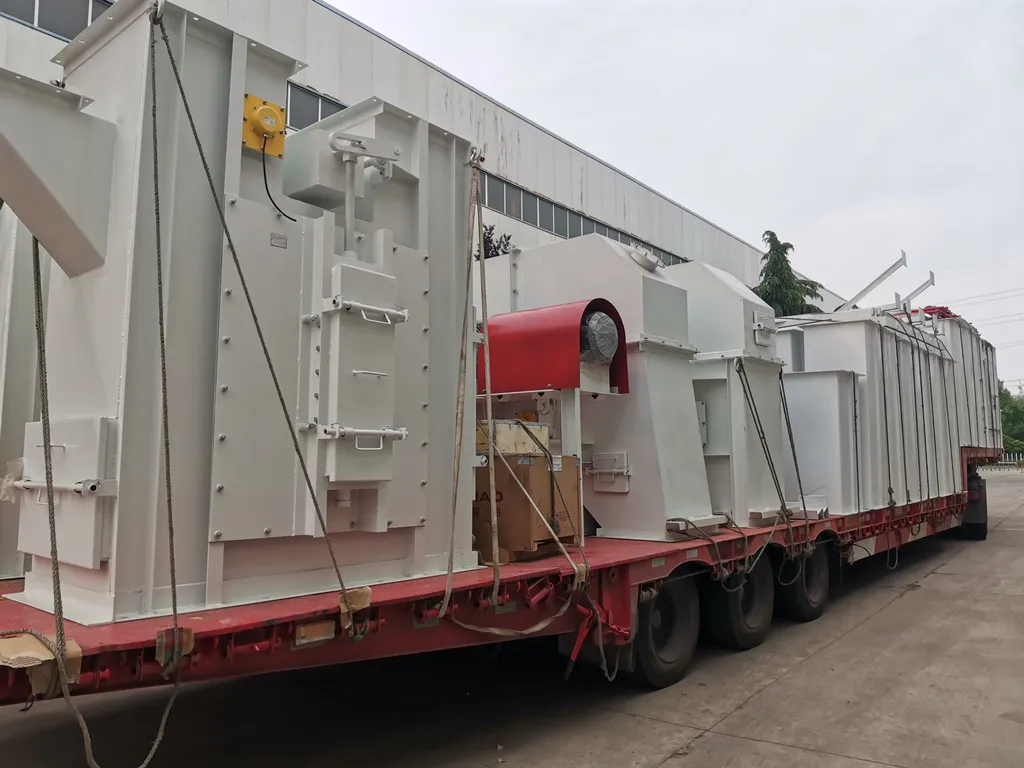

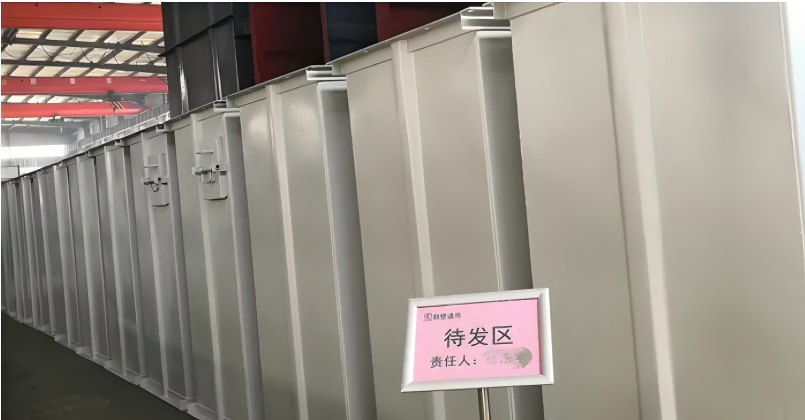

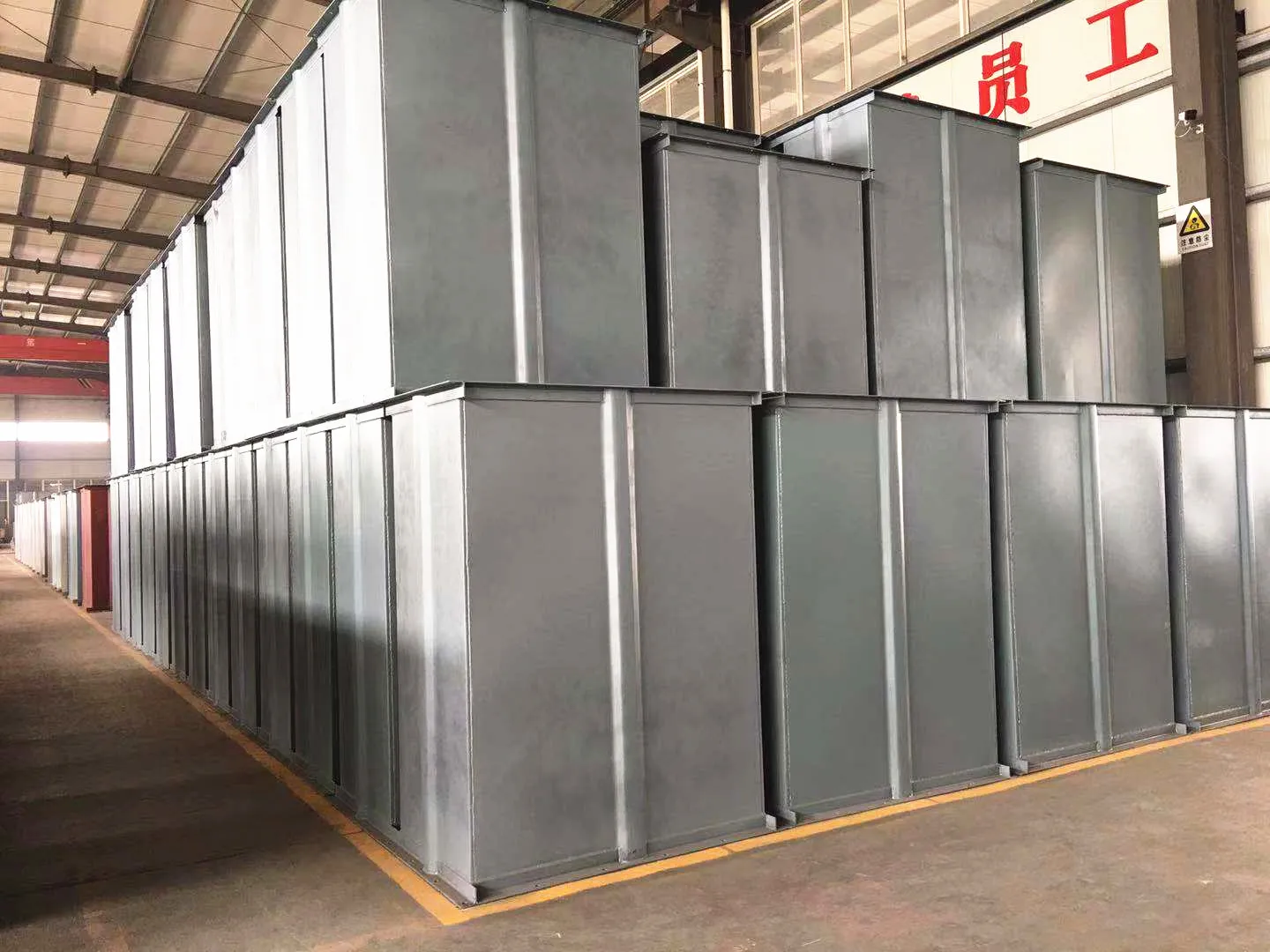

Fast-Track Delivery

. ERP-Driven Integration-Completed Industry-Informatization Fusion Management System

. Full Data Traceability-Enabling Fast-Track Delivery Capabilities at Hebi General

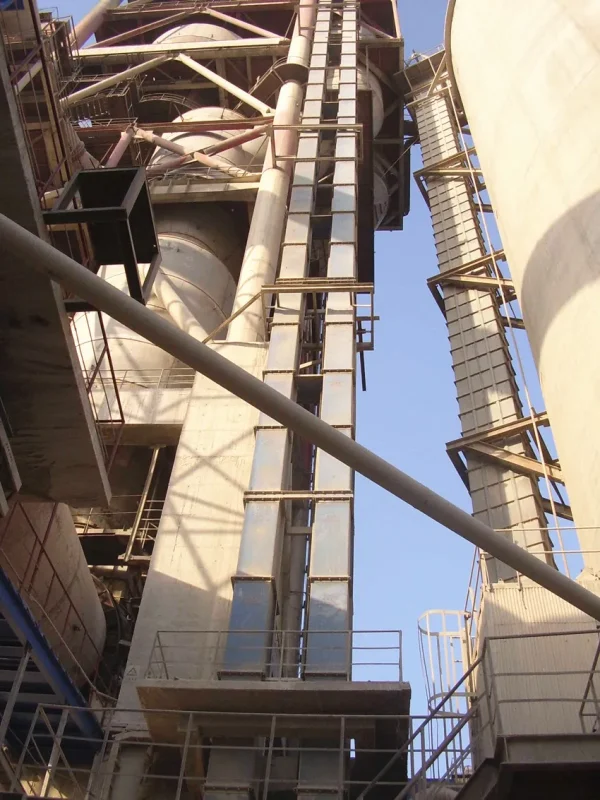

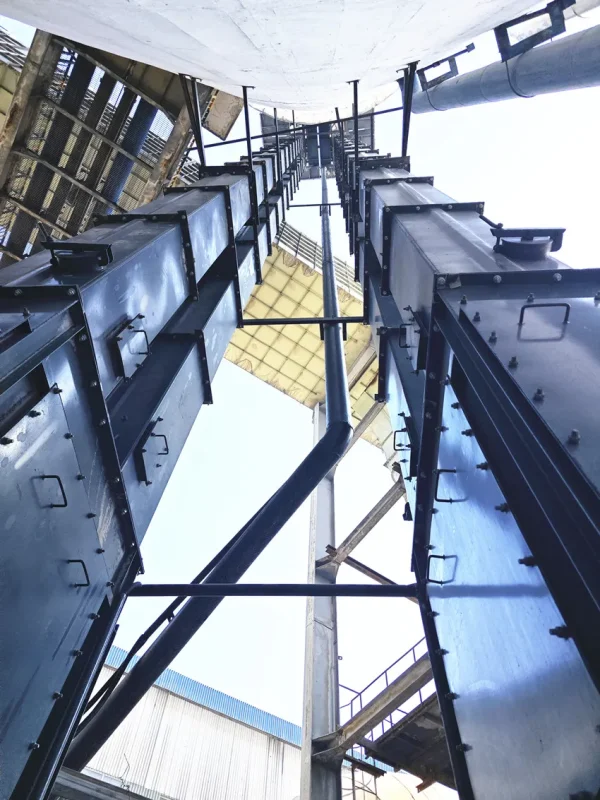

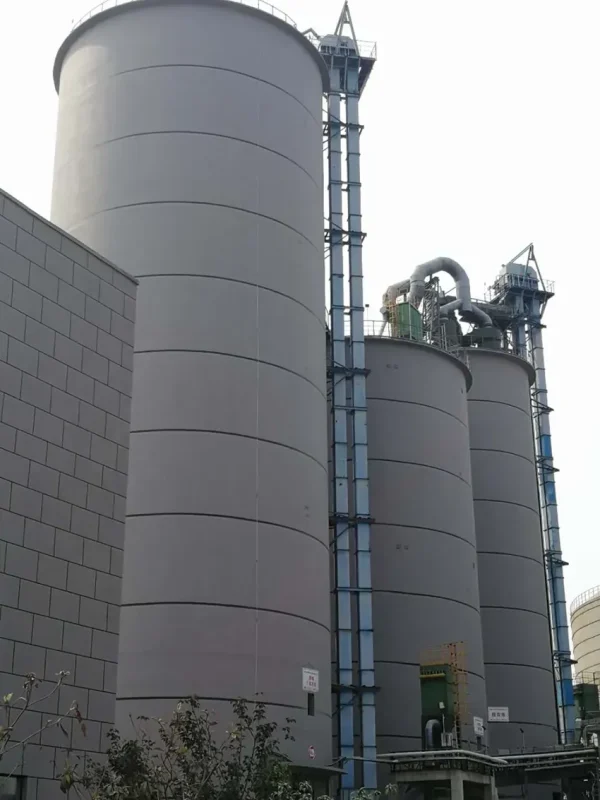

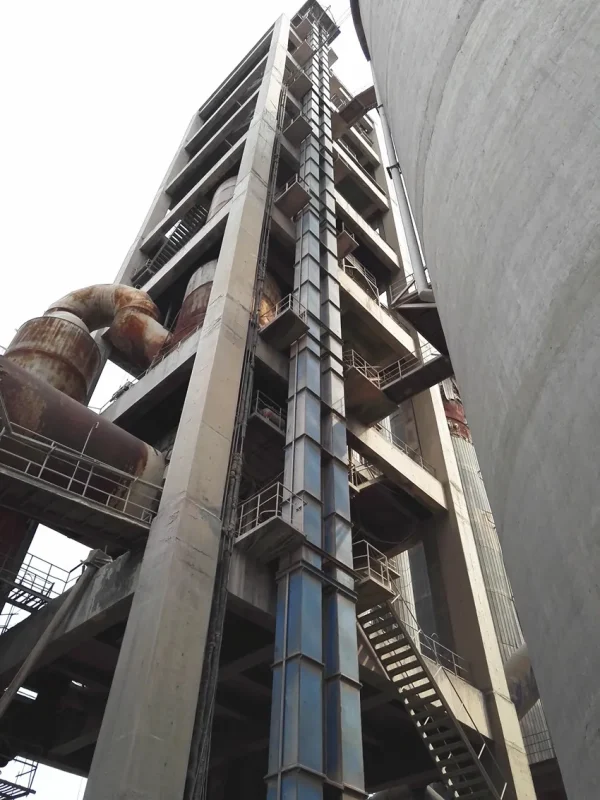

PROJECTS

PRODUCT INFORMATION

Product Overview

The TGD Steel Cord Reinforced Belt Bucket Elevator delivers high-capacity conveying, compact structure, low power consumption, smooth operation, high reliability, and extended service life.Designed for dry bulk powdered materials, it is widely implemented in bulk material lifting systems across building materials, metallurgical, chemical processing and power generation industries.

Product Features

1、High Lifting Capacity: Single-unit lifting height up to 80 meters.

2、Large Conveying Output: Capacity reaches 950 m³/h.

3、High Material Temperature Tolerance: Handles materials up to 120°C.

4、Continuous Material Flow: Densely arranged buckets enable continuous extraction and discharge.

5、Extended Service Life & Reliability: >30,000 hours of operation without failure.

6、Energy Efficiency: ≥30% lower power consumption vs conventional elevators, reducing operational costs.

7、Low Maintenance: Minimal wear parts with ≥80% reduced maintenance costs compared to standard bucket elevators.

8、Precision Engineering: High structural accuracy, robust strength, and streamlined appearance.

Parameters

Model of Bucket Elevator	Bucket Width (mm)	Bucket Volume (L)	Belt Speed (m/s)	Maximum Lump Size						Gear Reducer Ratio
				Account for %
				360	400	440	480	510	550
TGD250 S-Type	250	5.84	1.5	70	63	57	52	49	45	31.5
TGD250 D-Type	250	8.03	1.5	96	86	78	72	68	63	31.5
TGD315 S-Type	315	7.37	1.5	88	79	72	66	62	57	31.5
TGD315 D-Type	315	10.13	1.5	121	109	99	91	85	79	31.5
TGD400 S-Type	400	11.9	1.52	144	130	117	108	102	94	40
TGD400 D-Type	400	16.11	1.52	195	176	160	146	138	128	40
TGD500 S-Type	500	18.65	1.52	226	204	185	170	160	148	40
TGD500 D-Type	500	25.29	1.52		276	251	230	217	201	40
TGD630 S-Type	630	29.39	1.68		355	323	296	278	258	45
TGD630 D-Type	630	39.96	1.68			439	402	379	351	45
TGD800S-Type	800	33.21	1.68	446	401	365	334	315	292	45
TGD800 D-Type	800	43.74	1.68		529	480	440	414	384	45
TGD1000S-Type	1000	50.35	1.89		685	622	570	537	498	50
TGD1000D-Type	1000	64.15	1.89		872	793	727	684	634	50
TGD1250S-Type	1250	62.93	1.89		856	777	712	671	622	50
TGD1250D-Type	1250	80.18	1.89		1091	991	908	855	792	50
Note:
1 、The conveying capacity in the table is equivalent to 100%volumetric filling(with water). 2 、Recommended bucket filling factor:approximately 75%(for actual operating conditions).
