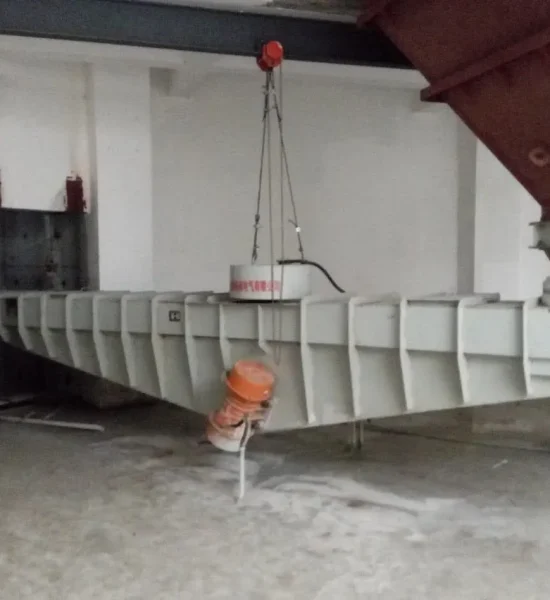

MOTOR VIBRATING FEEDER
Motor Vibrating Feeder
Model: GZG/ZG
Trough width: 400-2400mm
Capacity: 30~1700t/h
Rated Voltage: 380V
Double Amplitude: 2.5-5mm
PRODUCT INFORMATION

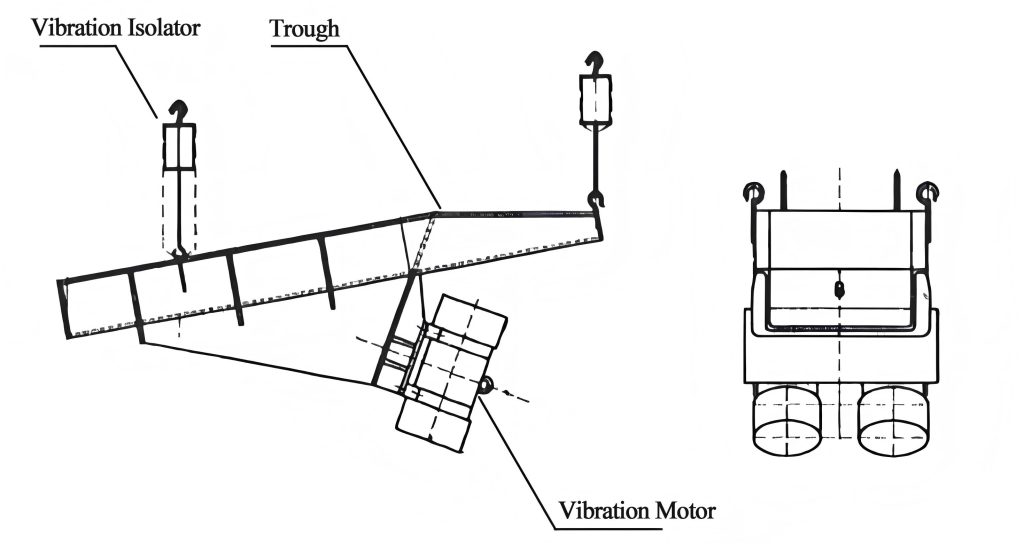

MOTOR VIBRATING FEEDER STRUCTURE
MOTOR VIBRATING FEEDER DESCRIPTION
The feeding process of the motor-vibrated feeder is achieved by utilizing specially designed vibration motors or two motors driving the vibrator to propel the feeding trough along an inclined direction in a periodic linear reciprocating motion. It is used to uniformly, continuously, or quantitatively deliver blocky, granular, and powdered materials from storage silos or other storage equipment to receiving devices. This equipment is suitable for automatic batching, quantitative packaging, and automated control systems.
MOTOR VIBRATING FEEDER FEATURES
1、Compact size
2、Low noise operation
3、Light weight
4、Low power consumption
5、Easy installation and maintenance
APPLICATION
The motor-vibrated feeder is widely used in industries such as mining, metallurgy, coal, building materials, chemicals, electric power, and grain processing for operations including continuous or quantitative feeding and automatic batching.
PARAMETERS
| Model | Trough Dimensions Width×Length×Height (mm) | Capacity (t/h) | Max. Feed Size (mm) | Vibration Frequency (times/min) | Double Amplitude (mm) | Rated Voltage (V) | Rated Current (A) | Power Frequency (Hz) | Power (kW) | Total Weight (kg) | |
| Horizontal | -10° | ||||||||||
| GZG400-4 | 400×1000×200 | 30 | 40 | 100 | 1450 | 4 | 380 | 2×0.73 | 50 | 2×0.25 | 171 |
| GZG500-4 | 500×1000×200 | 60 | 85 | 150 | 4 | 2×0.73 | 2×0.25 | 202 | |||
| GZG600-4 | 630×1250×250 | 110 | 150 | 200 | 4 | 2×1.53 | 2×0.55 | 379 | |||
| *GZG700-4 | 700×1029×250 | 120 | 170 | 200 | 4 | 2×1.53 | 2×0.55 | 389 | |||
| GZG800-4 | 800×1500×250 | 160 | 230 | 250 | 4 | 2×1.95 | 2×0.75 | 563 | |||
| *GZG900-4 | 900×1483×250 | 180 | 250 | 250 | 4 | 2×1.95 | 2×0.75 | 613 | |||
| GZG1000-4 | 1000×1750×250 | 270 | 380 | 300 | 4 | 2×2.71 | 2×1.1 | 762 | |||
| *GZG1100-4 | 1100×1673×250 | 300 | 420 | 300 | 4 | 2×2.71 | 2×1.1 | 854 | |||
| GZG1250-4 | 1250×2000×315 | 460 | 650 | 350 | 4 | 2×3.51 | 2×1.5 | 1099 | |||
| *GZG1300-4 | 1300×2040×300 | 480 | 670 | 350 | 4 | 2×3.51 | 2×1.5 | 1117 | |||
| *GZG1500-4 | 1500×2250×300 | 720 | 1000 | 500 | 3.5 | 2×5.19 | 2×2.2 | 1477 | |||
| GZG1600-4 | 1600×2500×315 | 770 | 1100 | 500 | 4 | 2×6.82 | 2×3.0 | 1555 | |||
| *GZG1800-4 | 1800×2325×375 | 900 | 1200 | 500 | 3 | 2×6.82 | 2×3.0 | 2350 | |||
| GZG2000-4 | 2000×3000×400 | 1000 | 1400 | 500 | 2.5 | 2×6.82 | 2×3.0 | 2705 | |||
| GZG700-6 | 700×1029×250 | 130 | 180 | 200 | 960 | 5 | 2×1.66 | 2×0.55 | 385 | ||
| GZG800-6 | 800×1500×250 | 170 | 250 | 250 | 5 | 2×1.66 | 2×0.55 | 510 | |||
| *GZG900-6 | 900×1483×250 | 200 | 270 | 250 | 5 | 2×1.66 | 2×0.55 | 561 | |||
| GZG1000-6 | 1000×1750×250 | 290 | 410 | 300 | 5 | 2×2.14 | 2×0.75 | 652 | |||
| *GZG1100-6 | 1100×1673×250 | 320 | 450 | 300 | 5 | 2×2.97 | 2×1.1 | 795 | |||
| GZG1250-6 | 1250×25000×315 | 500 | 700 | 350 | 5 | 2×2.97 | 2×1.1 | 1002 | |||
| *GZG1300-6 | 1300×2040×300 | 520 | 720 | 350 | 5 | 22×3.84 | 2×1.5 | 1070 | |||
| *GZG1500-6 | 1500×2250×300 | 780 | 1080 | 500 | 5 | 2×5.55 | 2×2.2 | 1414 | |||
| GZG1600-6 | 1600×2500×315 | 830 | 1190 | 500 | 5 | 2×5.55 | 2×2.2 | 1720 | |||
| *GZG1800-6 | 1800×2325×375 | 970 | 1320 | 500 | 5 | 2×7.28 | 2×3.0 | 2288 | |||
| GZG2000-6 | 2000×3000×400 | 1000 | 1400 | 600 | 4 | 2×12 | 2×4 | 2705 | |||
| GZG2200-6 | 2200×3400×500 | 1200 | 1550 | 700 | 5 | 2×18 | 2×5.5 | 6541 | |||
| GZG2400-6 | 2400×3700×600 | 1400 | 1700 | 700 | 5 | 2×18 | 2×5.5 | 7600 | |||

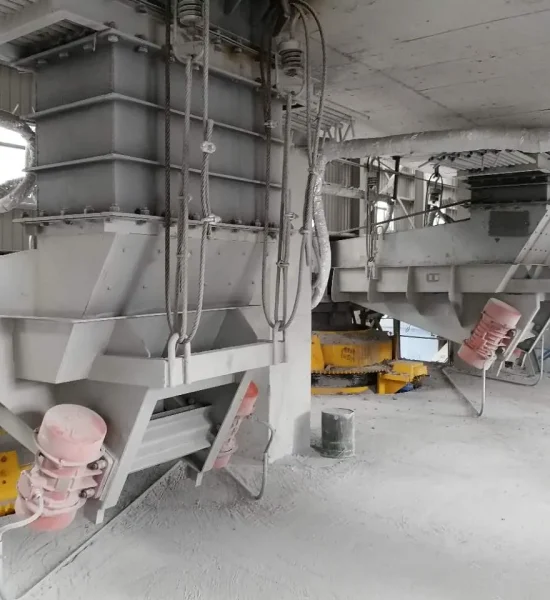

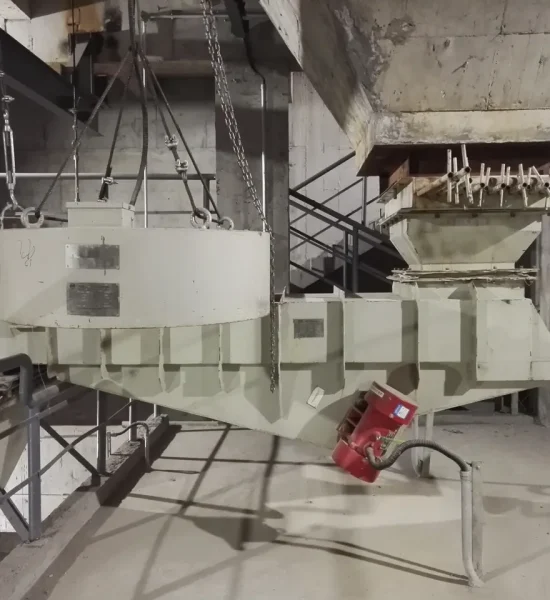

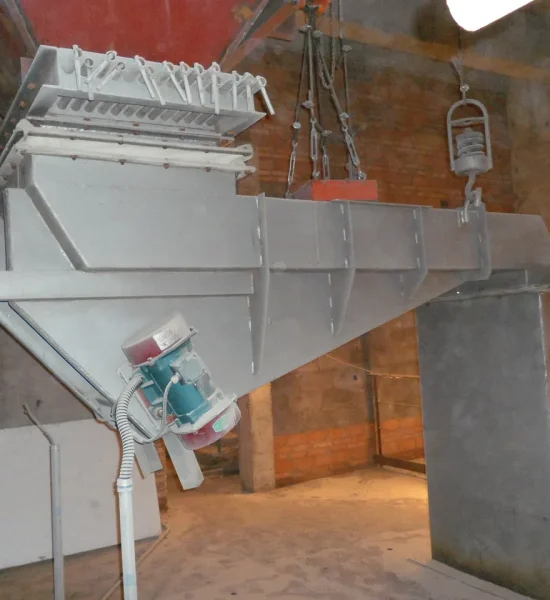

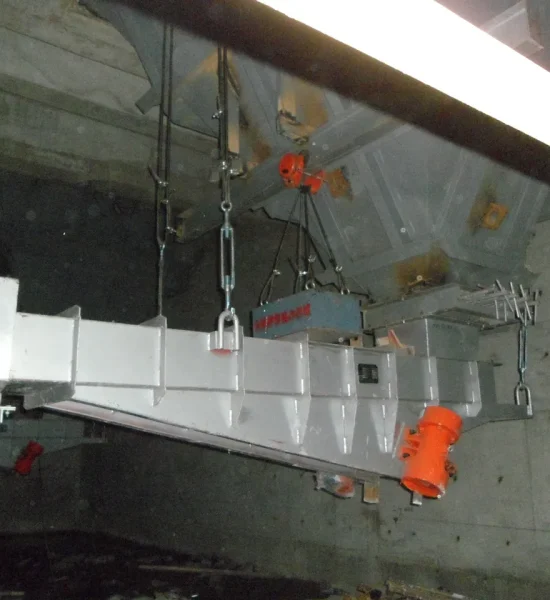

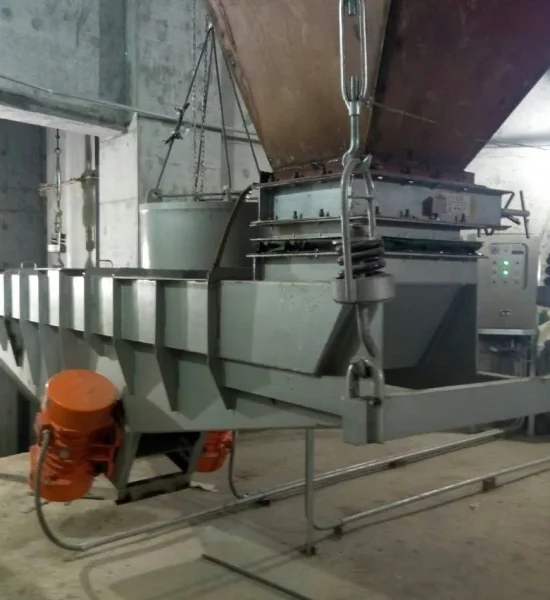

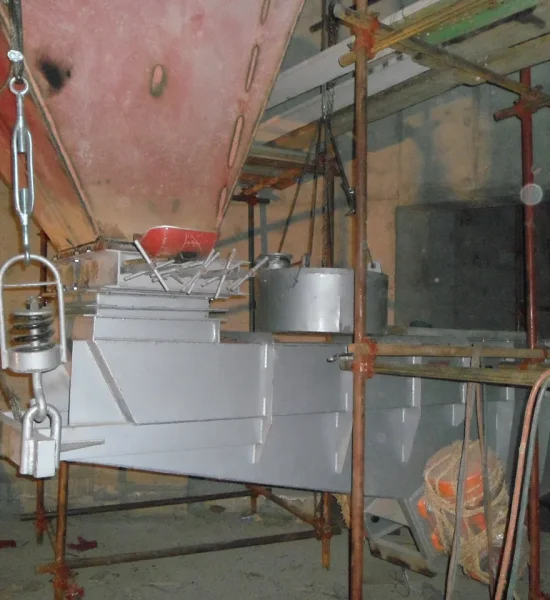

CUSTOMER CASE
