BELT CONVEYOR

DTII Belt Conveyor

Model: DTII

Belt Width: 500/650/800/1000/1200/1400/1600mm

Belt speed: 0.8/1.0/1.25/1.6/2.0/2.5/3.15/4.0/4.5m/s

Belt type: Nylon/Polyester/Steel cable/Cotton canvas

Tensioning mode: Spiral taut/Heavy hammer taut/Car type taut

Capacity: 69~4920m³/h

ADVANTAGE

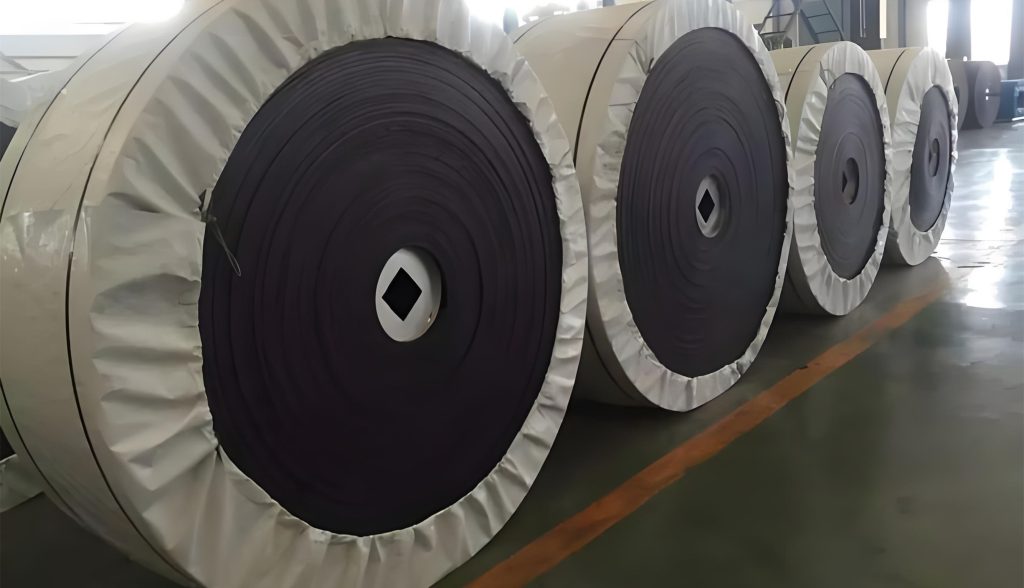

CONVEYOR BELT

Polyester/ nylon canvas, steel rope
• Low elongation
• High wet strength
• Good groove formation
• High anti-tearing strength
• Good resistant to fatigue and impact
• Good thermal stability

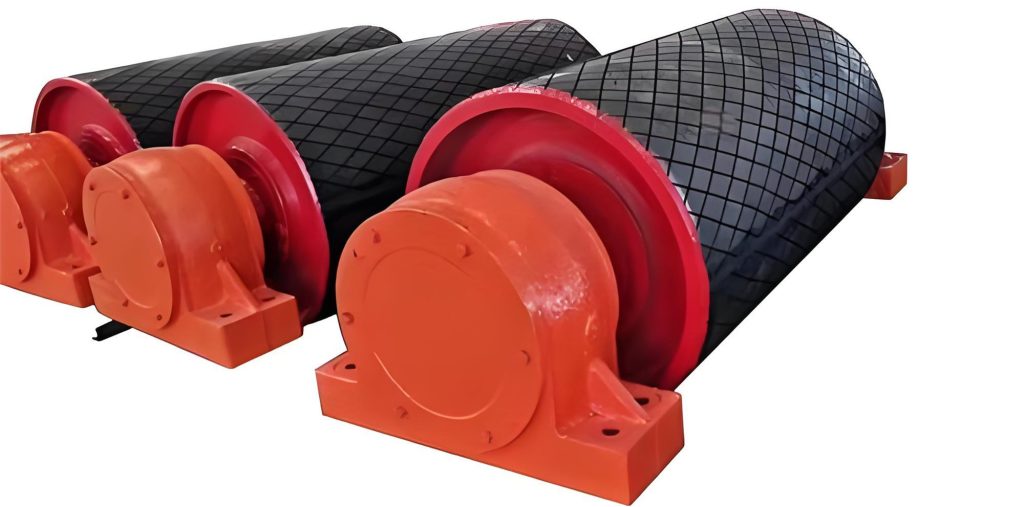

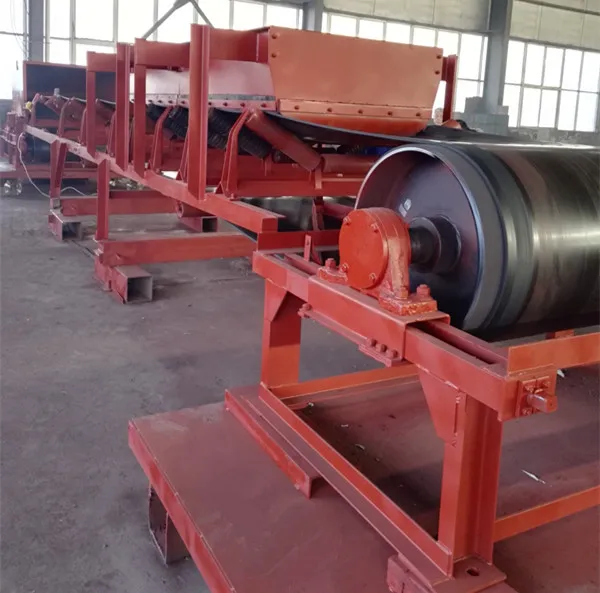

PULLEY

• High coefficient of surface friction
• Automatic welding
• Pillow block ball bearing
• For big environment humidity/ long distance
• Hydraumatic symmetric three-roll bending machine

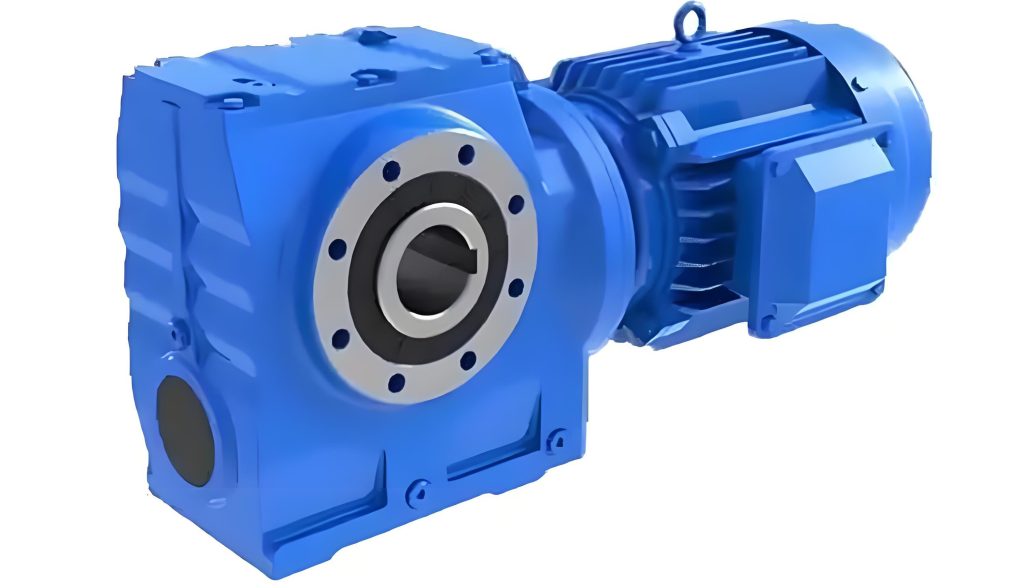

DRIVING DEVICE

• SEW, ABB, SUMITOMO, SIEMENS.
• Yutong,Tailong,Guomao,Taixing, etc.
• Shaft mounted
• Underslung gearbox reducer
• Strong braking force Brake.
• Optimization YOX & YOT constant filling hydrodynamic coupling

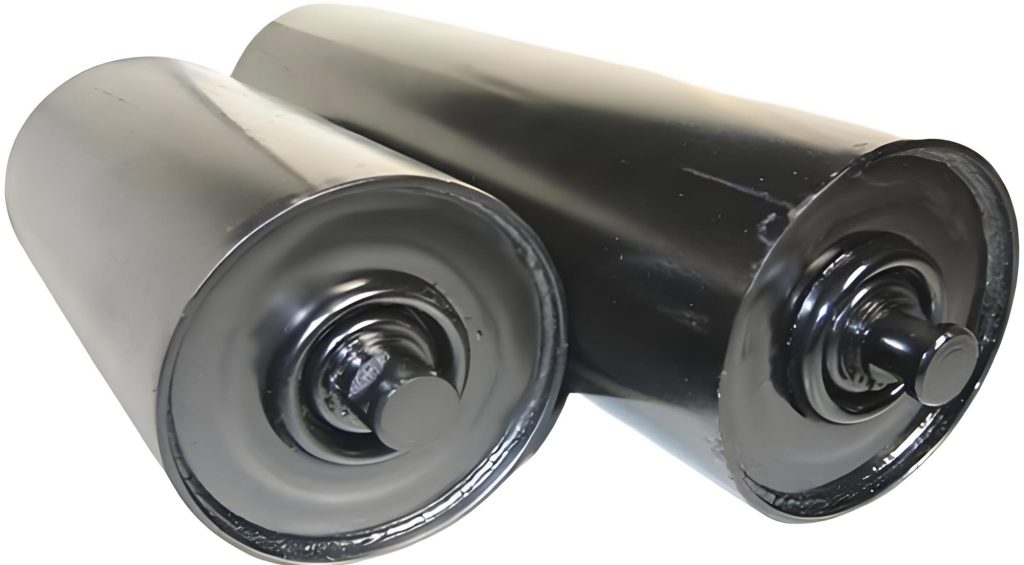

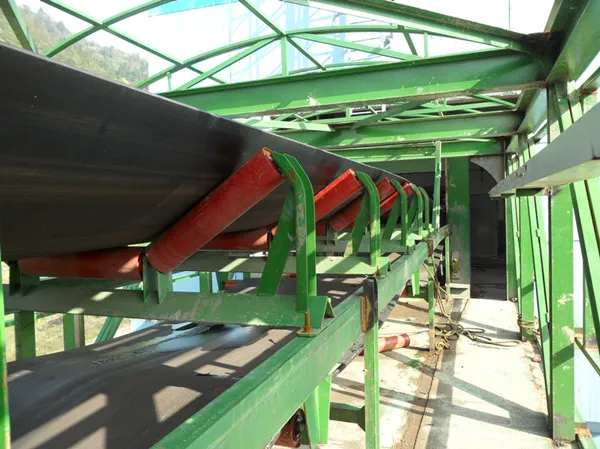

IDLER

• Various sizes of steel rollers
• Definitely water/dust proof
• Low total indicated runout (T.I.R.)
• Less vibration
• Long lifetime operation
• Adopt precision deep-groove ball bearing of international brand

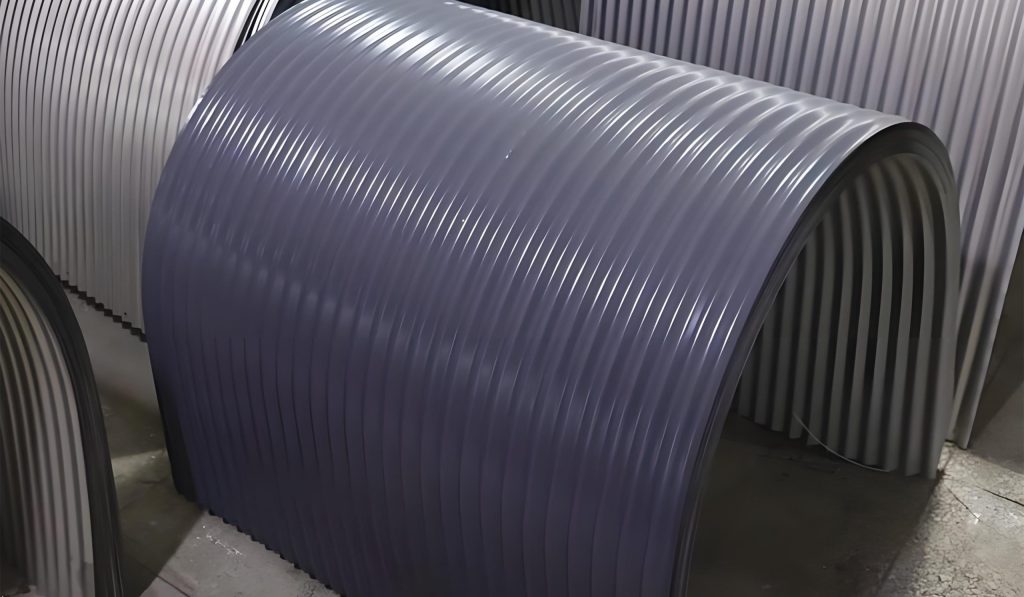

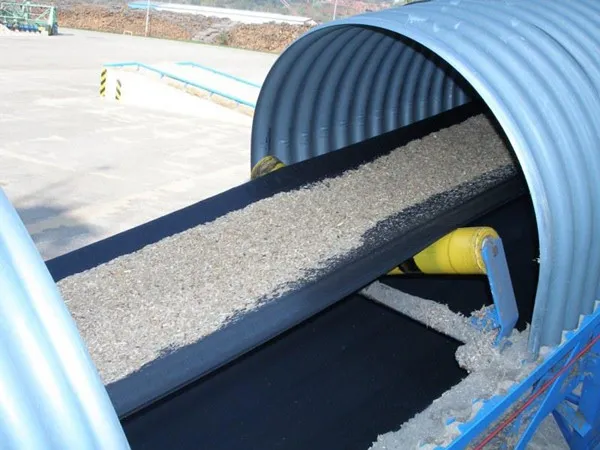

PROTECTION DEVICE

• Aluminum alloy housing
• Strong impact resistance
• Automatically warning sign
• Sensitive operation
• Prevent cable joints damp and virtual
• Plastic wire rope moisture, acid, flame retardant

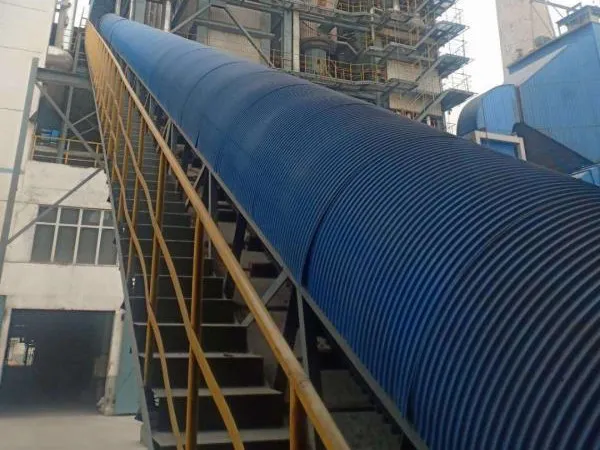

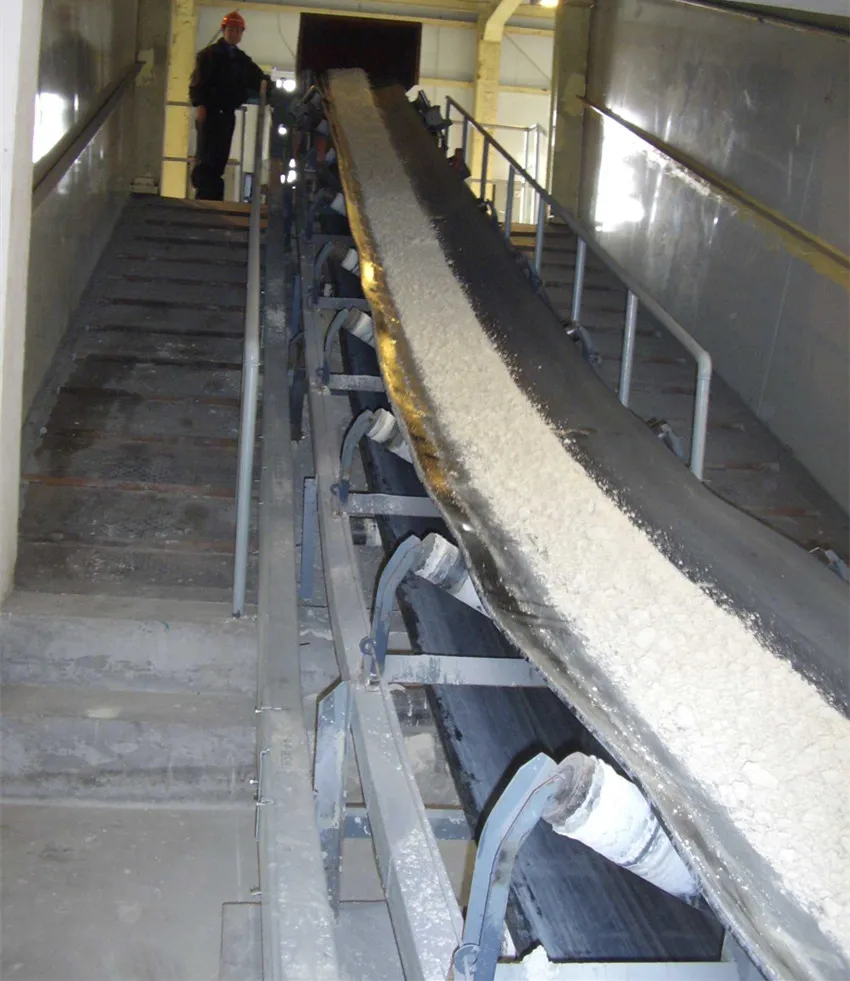

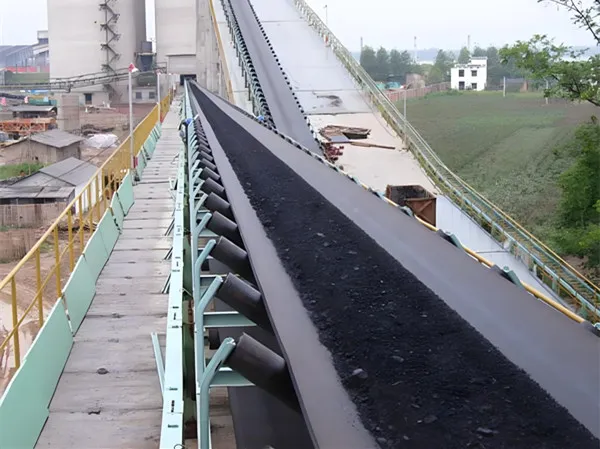

PROJECTS

PRODUCT INFORMATION

BELT CONVEYOR DESCRIPTION

The belt conveyor is a type of machinery that transports materials in a continuous manner via friction-driven motion. It can form a material handling process on a specific transport route, from the initial feeding point to the final discharge point. It is capable of handling both bulk materials and individual unit items.

In addition to purely transporting materials, it can be integrated into the industrial processes of various enterprises to establish a rhythmic flow operation line. Widely used in industries such as power generation, mining, metallurgy, coal, chemical, ports, and terminals, it handles materials with bulk densities ranging from 0.5 to 2.5 t/m³, including both loose bulk materials and unitized goods.

BELT CONVEYOR FEATURES

1. It can ransport many kinds of materials. All kinds of bulk materials, light weight products such as: cartons and packaging bags.

2. Optional moving selection of belt velocity (0.8m/s~4.5m/s). Work stably with less belt deviation and materials spillage.

3. Conveying stably, no relative movement between the material and the conveyor belt, to prevent damage to the conveying material.

4. Compared with other conveyors, it has less noise and is suitable for occasions where the working environment is relatively quiet.

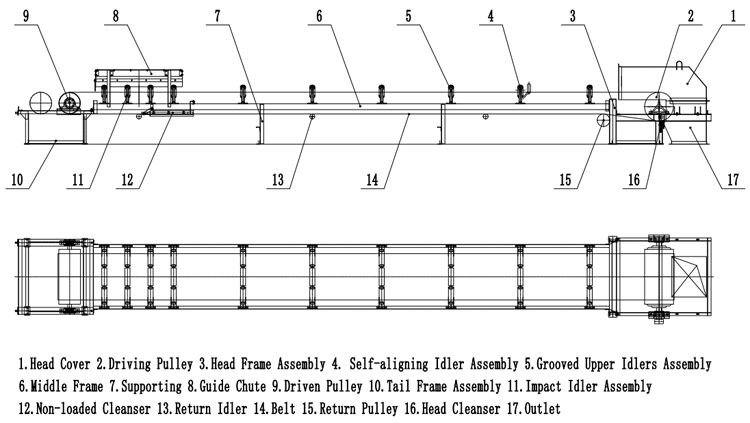

BELT CONVEYOR STRUCTURE

The main components of the belt conveyor are conveyor belt, idler and intermediate frame, pulley, driving device, tensioning device, brake device, cleaning device, protection device and unloading device.

Parameters

Belt width（mm）	Belt speed(m/s)
	0.8	1	1.25	1.6	2	2.5	3.15	4	4.5
	Delivery value(m³/h)
500	69	87	108	139	174	217
650	127	159	198	254	318	397
800	198	248	310	397	496	620	781
1000	324	405	507	649	811	1014	1278	1622
1200		593	742	951	1188	1486	1872	2377	2674
1400		825	1032	1321	1652	2065	2602	3304	3718
1600					2186	2783	3444	4373	4920

SELECTION INSTRUCTIONS

Material to be processed:______ Handling capacity: ______ t/h

Bulk Density:______ t/m3

Center distance between the head and tail pulley:_____m

Material temperature:______ ℃

Working environment temperature: ______ ℃

Material is corrosive or not: ______ (Ps. Yes or No)

Water content:______ %

Working environment: indoor? outdoor? ______

Max. granule size of the feeding material:______ mm Max. Granule’s percentage in whole material:______ %

The belt conveyor is inclined or not:______ (Ps. Yes or No) If it is inclined, what is the inclined degree______ °

Upstream equipment (using for feed the material):______

Downstream equipment (using for discharge the material):______

Whether needing supporting equipment?______ (Ps. Yes or No)

Working power supply: ______ V ______ HZ Quantity:______

The layout drawing : We will appreciate if you can provide us the layout drawing. The more detailed the better, because it can help our engineers to analyze, then we can give you the exactly quotation, supply the advanced technology support and more effective overseas installation and maintenance services.
