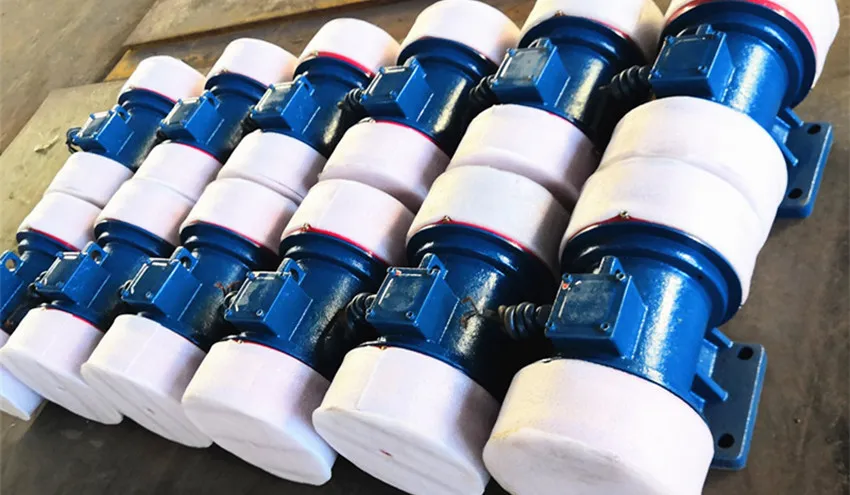

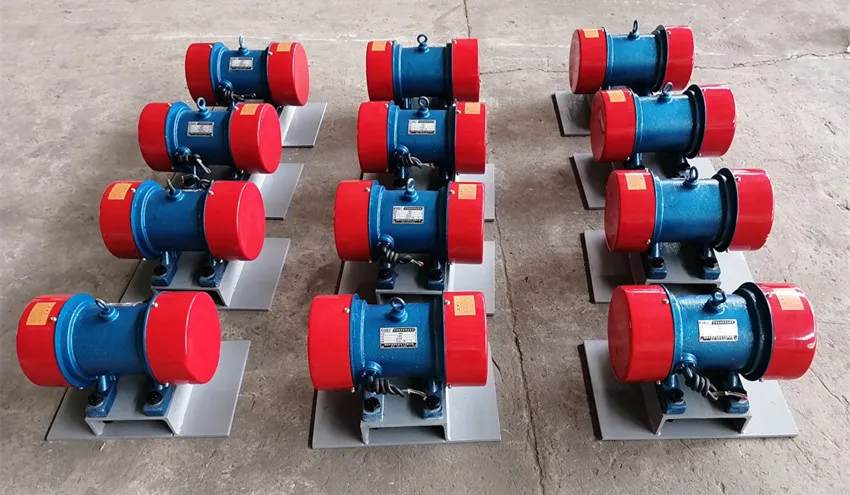

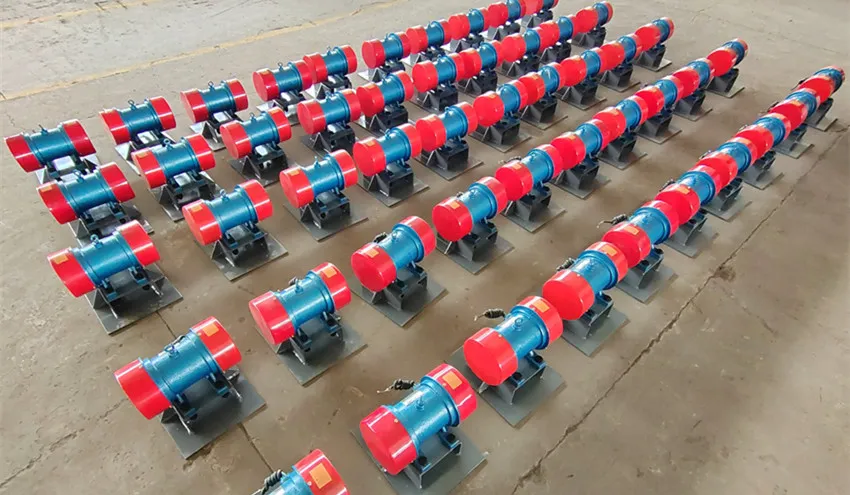

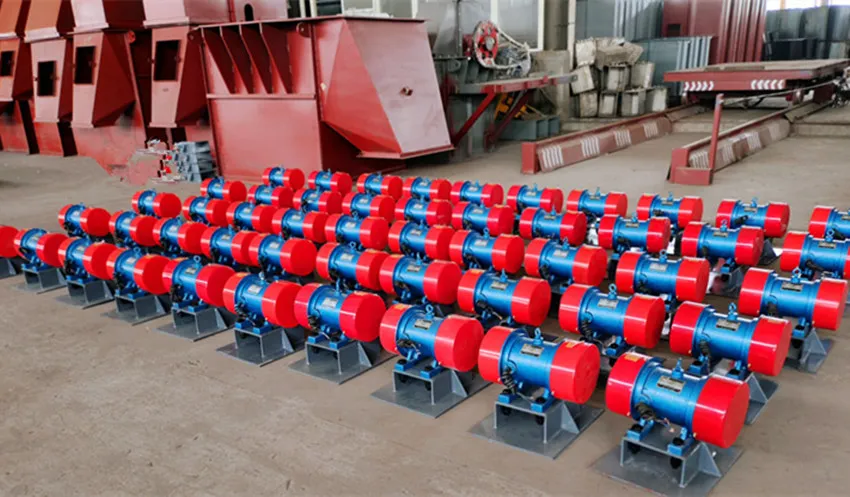

ELECTRIC BIN VIBRATOR

Electric Bin Vibrator

Model: ZF

Synchronous Speed： 3000r/min

Vibratory Force: 700~30000N

Voltage: 380V

Power：0.075~2.2kw

PRODUCT INFORMATION

ELECTRIC BIN VIBRATOR DESCRIPTION

Motor-driven Bin Vibrator / Flow Aid Device is specialized equipment designed to prevent and eliminate blockage issues in silos, tanks, or hoppers—such as material arching, ratholing, and material sticking—ensuring smooth material flow and enhancing the automation of material handling processes.

FEATURES

1. The Electric Bin Vibrator delivers powerful vibration, low power consumption, and high efficiency.
2. Its vibration intensity is adjustable, making it suitable for a wide range of applications.
3. Additional advantages include low noise, long service life, and easy installation and maintenance.

APPLICATION

The Electric Bin Vibrator is Widely used in power generation, building materials, coal, mining, chemicals, metallurgy, foundry, light industry, food processing, pharmaceuticals, grain processing, transportation, and many other industries.

PARAMETERS

Model	Bin/Chute Wall Thickness (mm)	Vibratory Force (N)	Power (kW)	Current (A)	Overall Dimensions (L×W×H, mm)	Weight (kg)	Voltage (V)	Synchronous Speed (r/min)
ZF-3	1.6-3.2	700	0.075	0.6	245170200	13	380	3000
ZF-4	3.2-4.5	1500	0.15	0.6	260200220	18
ZF-5	4.5-6	2500	0.25	0.6	300220250	25
ZF-6	6-8	5000	0.37	0.9	300220250	35
ZF-10	8-10	8000	0.75	1.75	350230260	50
ZF-15	10-13	20000	1.5	3.1	480360350	68
ZF-25	13-25	30000	2.2	4.8	560450400	100
